Kobelco SK130-8 Excavator:
Operating weight: 13,600 kg
Engine power: 73.4 kW
Bucket capacity: 0.32 - 0.68 m³
Max. digging depth: 5,560 mm
Max. digging reach: 8,225 mm
Kobelco SK135-8 Excavator:
Operating weight: 14,100 kg
Engine power: 73.4 kW
Bucket capacity: 0.32 - 0.68 m³
Max. digging depth: 5,820 mm
Max. digging reach: 8,425 mm
Kobelco SK140-8 Excavator:
Operating weight: 14,200 kg
Engine power: 72.7 kW
Bucket capacity: 0.32 - 0.68 m³
Max. digging depth: 5,610 mm
Max. digging reach: 8,270 mm

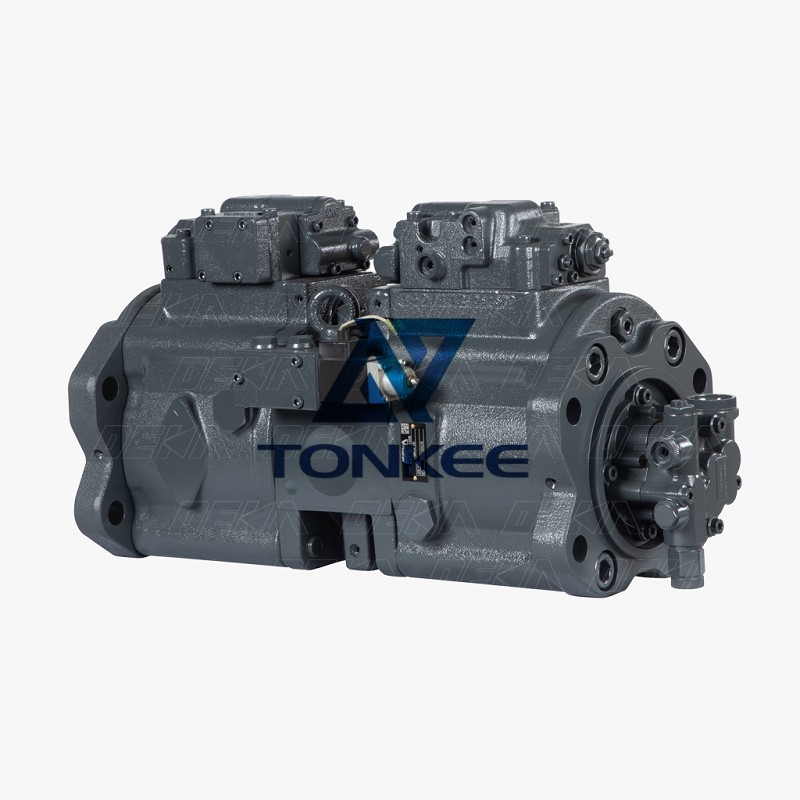

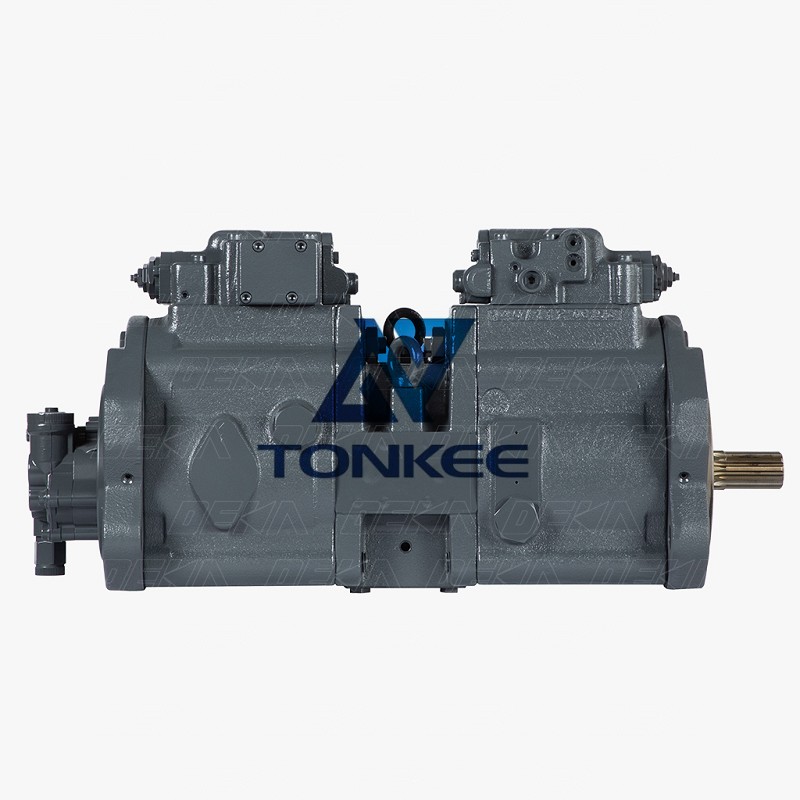

As for the K3V112DT-9N1A hydraulic pump, its specifications are as follows:
Displacement: 112 cm³/rev
Maximum pressure: 34.3 MPa
Speed range: 400 - 2000 rpm
Weight: 107 kg
