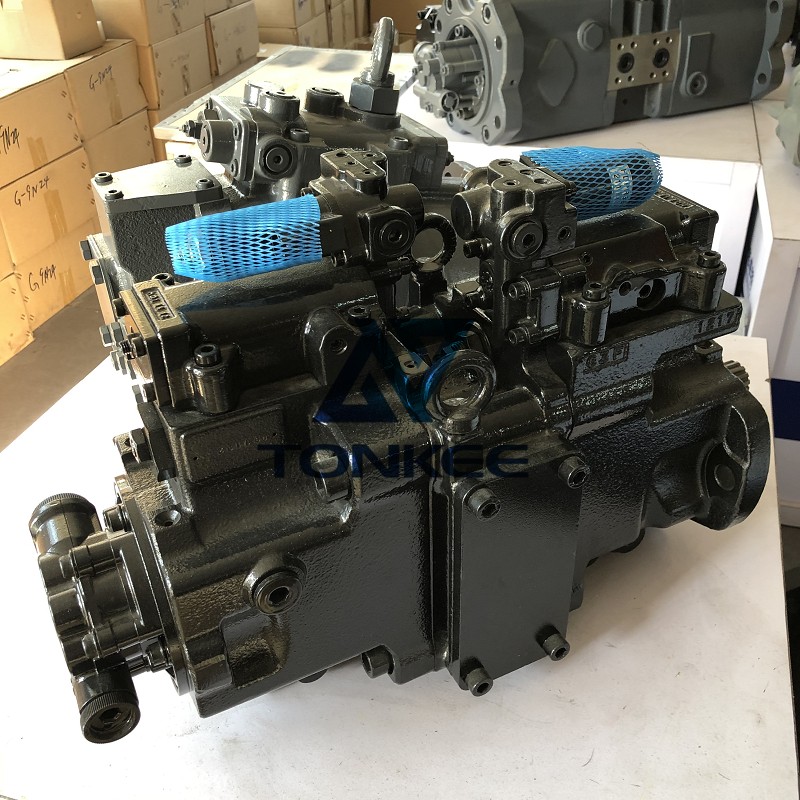

YY10V00009F4 and YY10V00001F1 Hydraulic Pumps:
Type: Axial piston pump
Displacement: 10.1 cm3/rev
Maximum operating pressure: 28 MPa
Maximum speed: 2,400 rpm
Weight: 20.6 kg
Mounting: SAE 2 bolt flange
SK140SR-3 Excavator:
Operating weight: 14,000 kg
Engine: Yanmar 4TNV94L, 4-cylinder water-cooled direct injection diesel engine
Power output: 73.4 kW (98.4 hp) @ 2,200 rpm
Bucket capacity: 0.21 - 0.65 m3
Maximum digging depth: 6,610 mm
Maximum dumping height: 7,030 mm
Swing speed: 11 rpm
Travel speed: 5.5 km/h
SK130-8 Excavator:
Operating weight: 13,400 kg
Engine: Yanmar 4TNV98CT, 4-cylinder water-cooled direct injection diesel engine
Power output: 84.6 kW (113.4 hp) @ 2,000 rpm
Bucket capacity: 0.22 - 0.64 m3
Maximum digging depth: 6,240 mm
Maximum dumping height: 6,880 mm
Swing speed: 10.5 rpm
Travel speed: 5.5 km/h
SK135S Excavator:
Operating weight: 13,200 kg
Engine: Isuzu AJ-4JJ1X, 4-cylinder water-cooled direct injection diesel engine
Power output: 72.7 kW (97.5 hp) @ 2,000 rpm
Bucket capacity: 0.22 - 0.67 m3
Maximum digging depth: 6,415 mm
Maximum dumping height: 7,015 mm
Swing speed: 10.5 rpm
Travel speed: 4.9 km/h
