Shop made in China K3V112DT-1E42 kawasaki pump

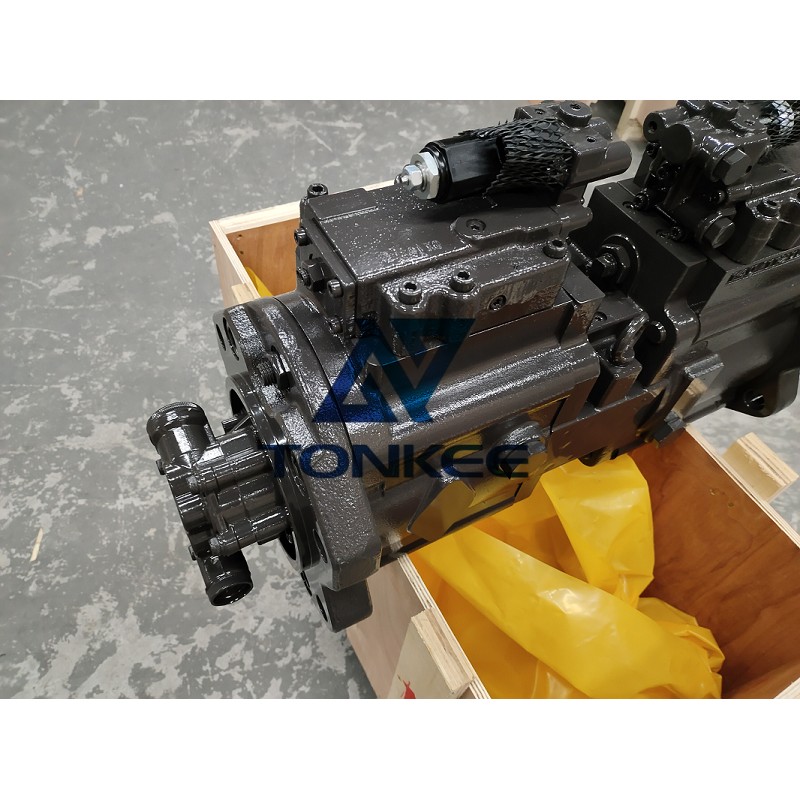

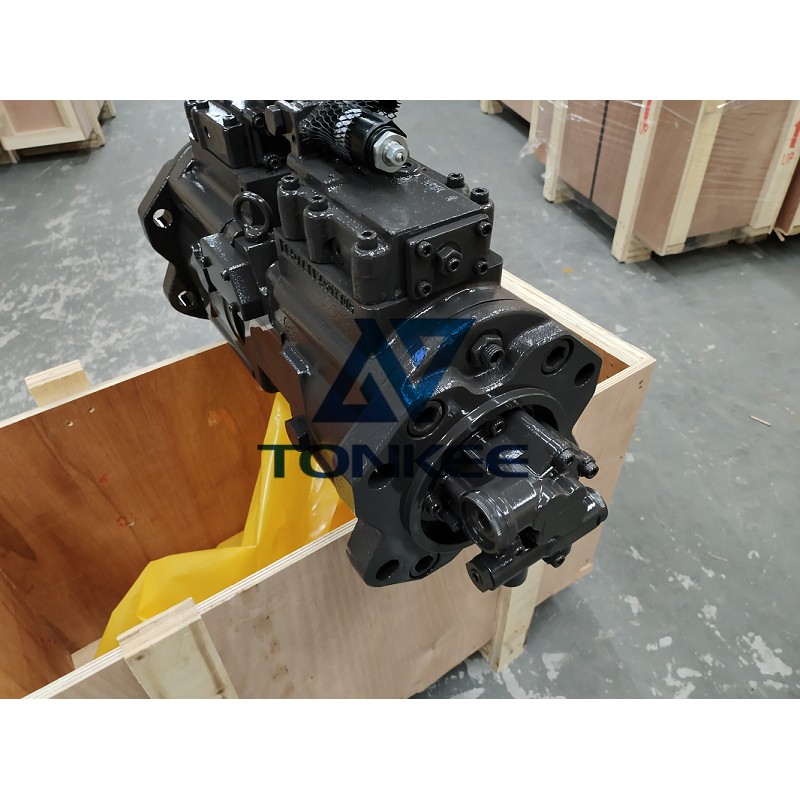

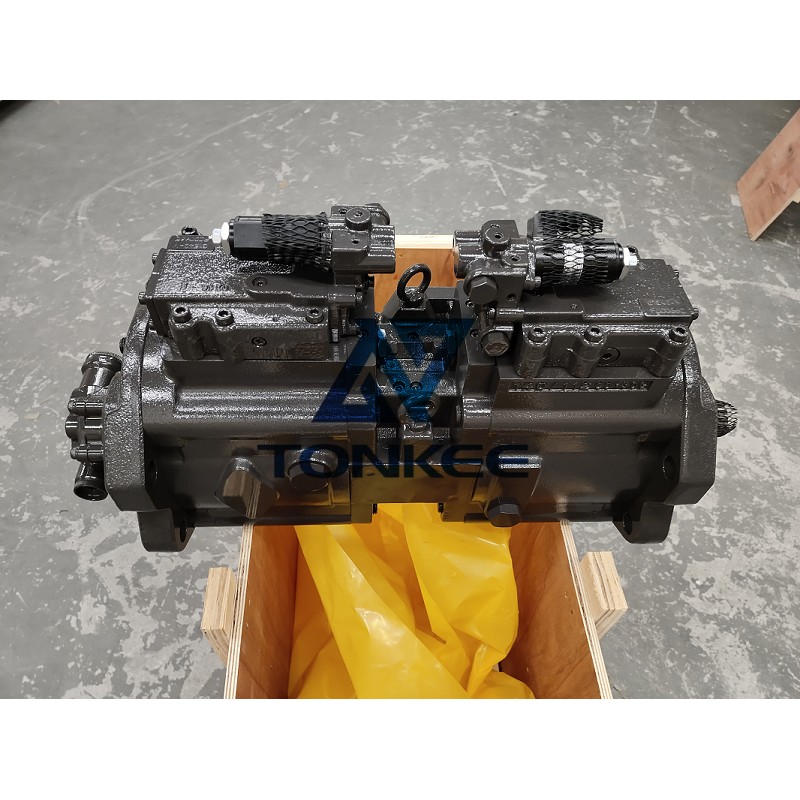

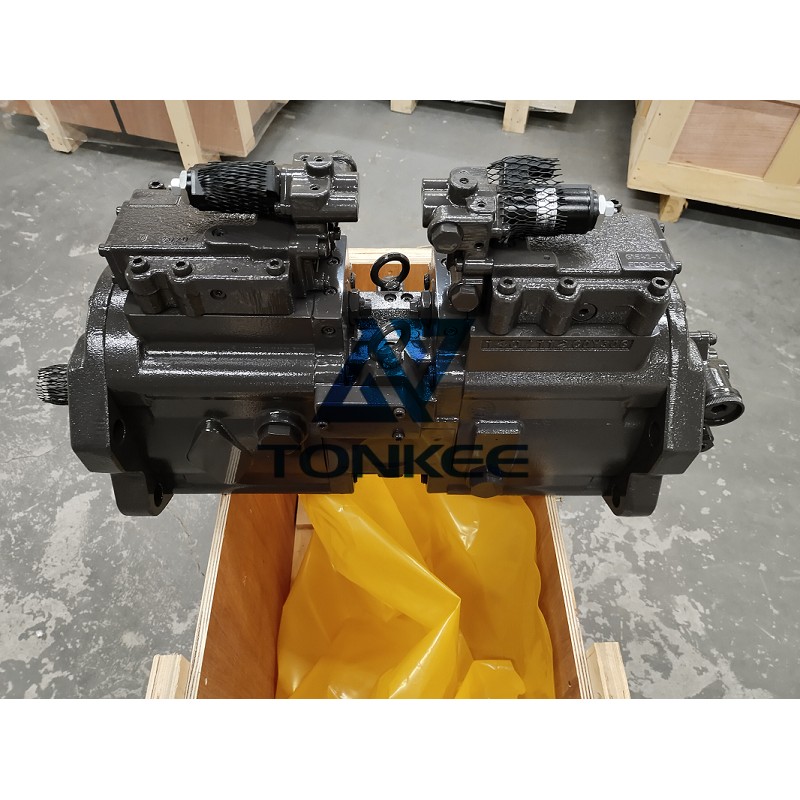

The K3V112DT-1E42 pump is designed to provide reliable and consistent hydraulic power.

It has a displacement of 112 cm³/rev, which refers to the volume of fluid it can deliver per revolution. This displacement capacity allows the pump to generate substantial hydraulic pressure, making it suitable for demanding tasks.

The pump is equipped with a robust axial piston design, featuring nine pistons that are arranged in a radial configuration. This design ensures smooth operation and minimizes wear, enhancing the overall lifespan of the pump. The pistons are driven by a swash plate mechanism, which enables precise control of the hydraulic flow and pressure.

The K3V112DT-1E42 pump is capable of operating at high pressures, with a maximum rated pressure of 350 bar (35 MPa). This pressure rating makes it suitable for heavy-duty applications that require substantial force or lifting capacity. The pump also offers a maximum speed of 2800 RPM, allowing for efficient operation in various working conditions.

To ensure efficient performance, the K3V112DT-1E42 pump incorporates advanced technologies. It features a servo control system that enables precise and responsive control over the hydraulic output. This system ensures accurate load sensing and facilitates energy-saving operation by adjusting the pump's displacement according to the actual demand.

Furthermore, the pump is designed to be highly reliable and easy to maintain.

It incorporates high-quality components and materials to withstand demanding operating conditions and minimize the risk of failure. The pump's compact and lightweight design facilitates easy installation and integration into different hydraulic systems.

The K3V112DT-1E42 pump is compatible with a wide range of hydraulic fluids, including mineral oils and biodegradable hydraulic fluids. This versatility allows it to be used in various industries such as construction, mining, material handling, and agriculture.
