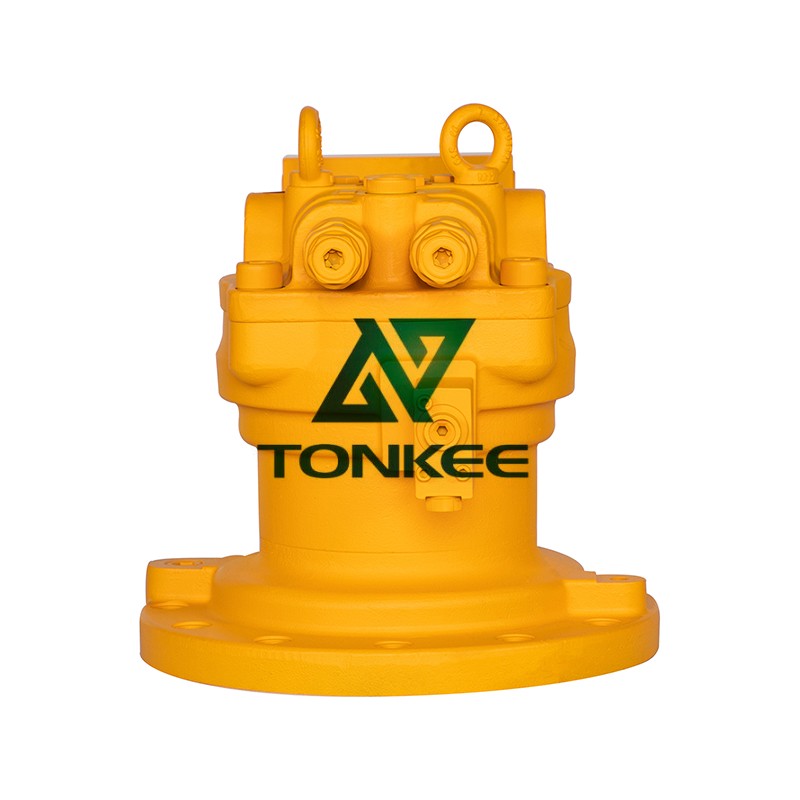

China M2X150(12-hole) PC200-8 60100458-J

Type: Fixed displacement axial piston motor
Maximum displacement: 150 cc/rev
Maximum pressure: 34.3 MPa (343 bar)
Maximum speed: 2,300 rpm
Maximum torque: 52.7 kN·m
Weight: 148 kg
Control type: Hydraulic servo control
Direction of rotation: Clockwise (viewed from the shaft end)
Shaft seal type: Double lip seal
Suction port: SAE #12
Discharge port: SAE #20
Shaft diameter: 75 mm
