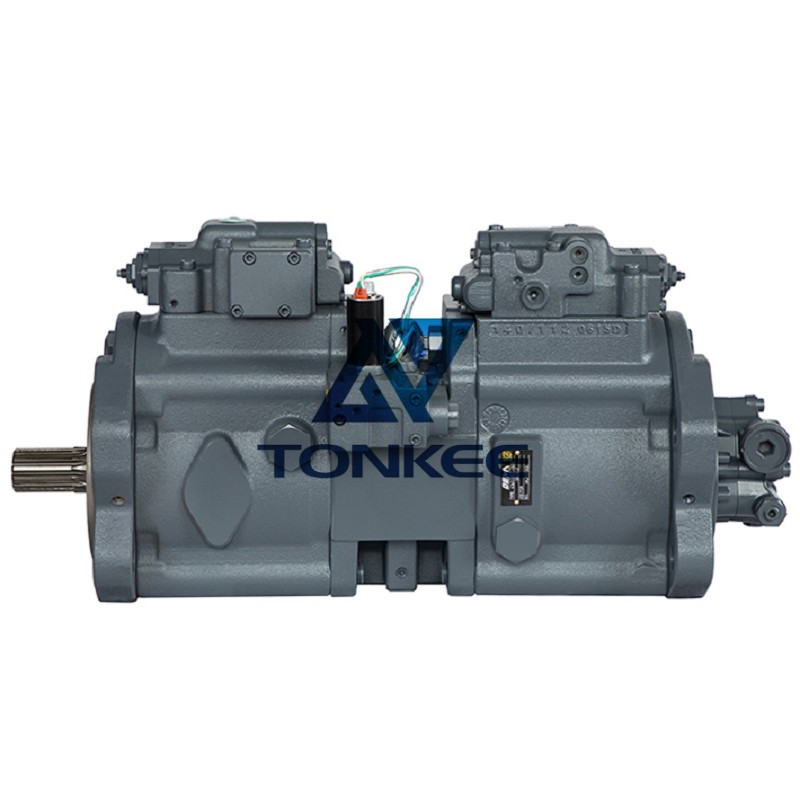

OEM EC290 K3V140DT-9N04 Hydraulic pump

Type: Variable displacement axial piston pump
Maximum displacement: 140 cc/rev
Maximum pressure: 35 MPa (350 bar)
Rated speed: 2,100 rpm
Weight: 118 kg
Control type: Hydraulic servo control
Direction of rotation: Clockwise (viewed from the shaft end)
Shaft seal type: Double lip seal
Suction port: M48 x 2
Discharge port: M36 x 2
Shaft diameter: 70 mm
